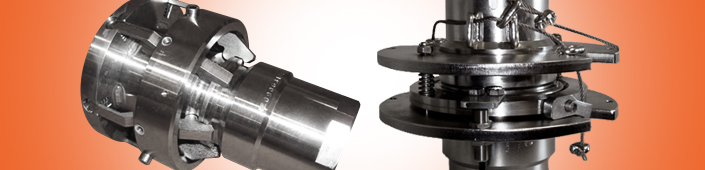

OPW NTS Series Safety Breakaway Coupling安全緊急拉斷裝置
Safety Breakaways 安全拉斷閥
OPW安全拉斷閥
拉斷閥是安全運輸危險和非危險品的重要元件。OPW 產品能確保液體、氣體和粉末介質的安全運輸。從而保護裝載／卸載系統免受慘重?fù)p失 并大大減少了代價昂貴的故障停機時間。 該拉斷閥尤其應用在船、登岸船、固定接收站點、罐車和軌道車的裝卸系統中。與領先的石油、天然氣和石化工業企業進行密切的合作。 石油、天然氣和石化行業對OPW所提供的可靠解決方案和對人員、設備和環境的保護已建立了長期穩固的信任。 OPW一共有三種型號的船用拉斷閥， 拉繩型的是NTS-SZ,爪擒式的是NTS-PU,專用在低溫上的是NTS-CC。The NTS Series Safety Breakaway Coupling from OPW represents the best available technology to protect your equipment, your people and the environment. Whether you are loading tank trucks, railcars, barges or ships, with liquid or gas; the NTS is designed to separate in the event of an unintended pull-away. Non-return valves positively shut both ends preventing spills and protecting the loading station at the same time.

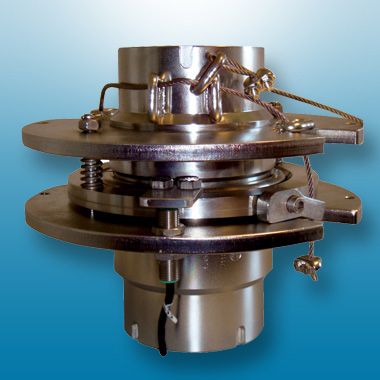

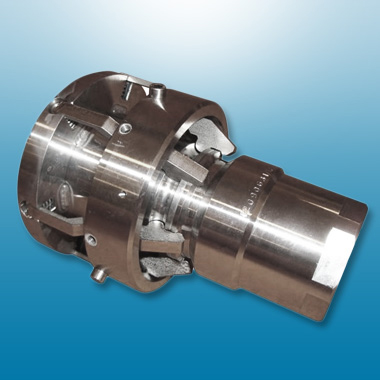

OPW一共有三種型號的船用拉斷閥， 拉繩型的是NTS-SZ,爪擒式的是NTS-PU,專用在低溫上的是NTS-CC。
Specifications
Connections
|
FNPT or Flange (150/300#) |
Sizes |
1", 2", 3", 4", 6" (Sizes up to 12" Available Upon Request) |
Max. Pressure |
360 PSI (Alu 232 PSI) |
Materials |
316 Stainless Steel (Anodized Aluminum in 4" size only) |
Seals |
Fluorocarbon, EPDM, Chemraz ? |
*Other materials available upon request. |

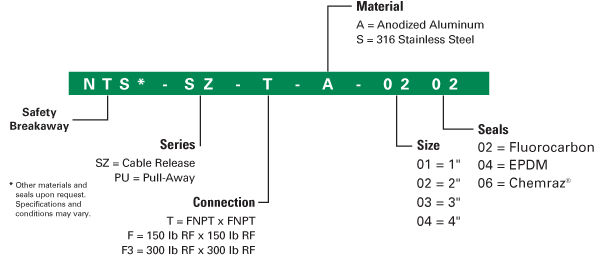

訂貨型號
