OPW工程系統公司生產的旋轉接頭廣泛應用于化工、石油、石化、煉油、采礦、蒸餾、釀造、油墨、涂料工業，以及農業灌溉和施肥。設計、工廠和維護工程師會在軟管管道、灌裝臂、軟管盤、下水道疏通設備和污水處理設備以及各種工藝機械中使用OPW旋轉接頭。他們也會在機床冷卻液輸送、桶料灌裝以及各種近距離液體和干散貨輸送用途中使用。 多功能性是OPW工程系統公司旋轉接頭的關鍵，這使在負壓或真空條件下使用剛性金屬管進行液體和干散貨裝卸成為可能，并解除了繁重操作和笨重軟管所帶來的困境或危險。
OPW公司的設計工作在先進的CAD系統支持下，可以更快、更準確滿足客戶的技術要求。OPW旋轉接頭經久耐用、質量可靠、便于操作和維護。可選擇的材質包括不銹鋼、鑄鋼、結構鋼、球墨鑄鐵、鋁和銅，可以滿足客戶-嚴苛的規格需求。專業規格有分體法蘭型、夾套型、內襯型和鍍膜型。
OPW swivel joints中文技術資料PDF下載
60多年來，OPW工程系統公司為一些-具挑戰性的液體處理應用提供了創新性的解決方案。我們引以為傲的是可以為您提供定制設計和制造的旋轉接頭，以滿足您的專業需求。工程師們會與您一起工作，滿足您使用需求的。
OPW Swivel Joints Catalog

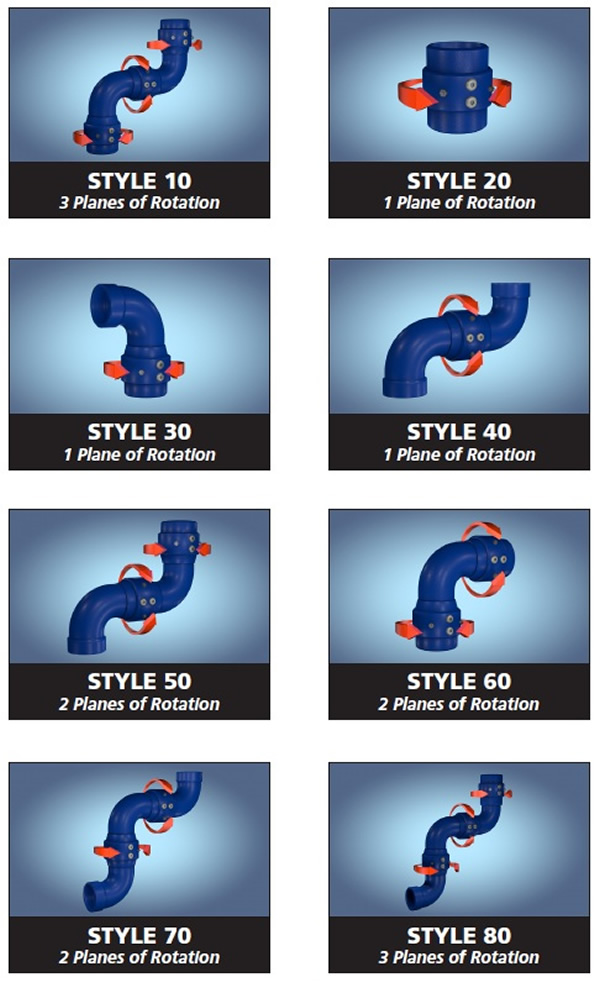

OPW 3000系列旋轉接頭
- 傳統單層壓力O型密封圈
- 重負載情況下，雙軌滾珠保證內部結構不會偏移
- 多種規格可供選擇
- 在更惡劣環境可選用8000系列 多種材質、尺寸和類型：
- 標準尺寸：1” - 12”
- 標準材質：鋁制、銅質、碳鋼、鑄鐵、不銹鋼
- 標準密封圈材質：Fluorocarbon, PTFE, EPDM, Neoprene
- 接口類型：FNPT, 150/300 ANSI 法蘭, Butt/Socket Weld
OPW 8000系列 DSF 雙分體法蘭旋轉接頭
OPW 8000 Series Endura Split Flange Swivels

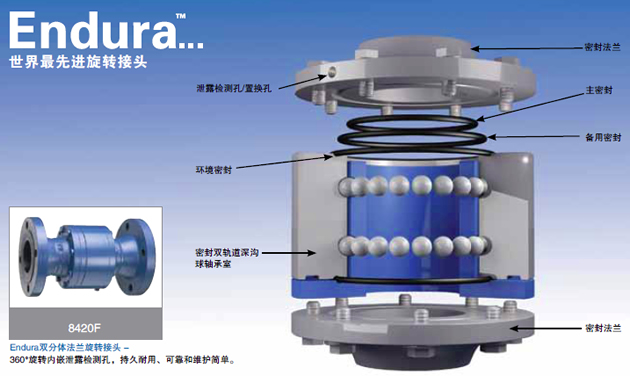

Endura 8000系列雙體法蘭旋轉接頭
- 好的旋轉接頭技術
- 專為化工/工業灌裝臂應用設計
- 可提供2"、3" 和4"口徑規格和多種材質包括碳鋼、全不銹鋼等
- 500磅壓力等級
裝卸臂使用旋轉接頭
更耐用
冗余密封保護
維護更容易
無需拆卸滾珠即可更換密封圈
可更換的軸承系統
泄漏監測
2”、3” 、4”
不銹鋼、碳鋼和鋁合金可選
Metal Options
- Aluminum (ASTM B26, A356 T6)
- Bronze ( ASTM B62-83600)
- Carbon Steel (ASTM A105)
- Ductile Iron (ASTM A-536)
- Stainless Steel (ASTM A351-CF3M/CF8M)
Seal Options
- Buna
- Fluorocarbon
- PTFE
- EPDM
- Neoprene
- Kalrez
Lubrication
Lubrication plays an important role in the life expectancy of a swivel joint. OPW has done extensive research to determine the best lubricants for our products. Our standard is a High Performance Synthetic Lubricant (OPW part # 880-0089).
- Specially formulated to reduce friction & wear.
- Requires only annual lubrication
- Will not drip, melt or carbonize
- Complies with FDA regulation 21CFR178.3570
- Temperature Range -40F – 750F (-40C – 399C)
- Not for use with EPT/EPDM Seals. EPT/EPDM seals require the use of OPW 885-0085 lubricant.

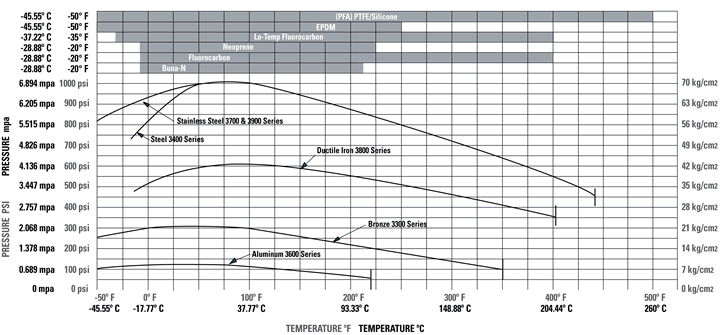

Specifications
- 3200 Series (Cast Steel, High-Pressure) Bodies and tails of cast 1040 carbon steel with hardened raceways. Ball bearings are precision-ground steel. Buna-N main O-ring seal with Teflon? back-up ring, and Buna-N O-ring dust seal are standard.
- 3300 Series (Cast Bronze) Bodies and tails of hard, wear-resistant cast bronze (ASTM B62-83600). Precision-ground steel balls, Buna-N O-ring main seal and felt dust seal are standard. 1" size has Buna-N O-ring dust seal.
- 3400 Series (Fabricated Steel) Bodies and tails of 1040 carbon steel with hardened raceways. Welded construction; 100% penetration welding by welders certified to ASME Boiler and Pressure Vessel Code, Section IX. Precision-ground steel balls, Buna-N O-ring main seal, Buna-N O-ring dust seal. Standard flanges are ASME 150 lb. raised face type.
- 3600 Series (Cast Aluminum) Bodies and tails of cast A-356 high-tensile strength aluminum. Precision-ground steel balls, Buna-N O-ring main seal, and felt dust seal are standard. 1" size has Buna-N O-ring dust seal. Flanges are dimensionally compatible to ASME 150 lb. flat face configuration.
- 3700 Series (Cast Stainless Steel) Bodies and tails of high quality cast ASTM A351-CF3M/CF8M stainless steel. Precision-ground stainless steel balls, Buna-N O-ring main seal and Buna-N O-ring dust seal.
- 3800 Series (Cast Ductile Iron) Bodies and tails of cast A-536 ductile iron. Precision-ground steel balls, Buna-N O-ring main seal, and felt dust seal are standard. Buna-N O-ring dust seal standard in 1" size. ASME B16.1, Class 125 dimensionally equal to 150lb. ASME RF Flange.
- 3900 Series (Fabricated Stainless Steel) Bodies and tails of high-quality ASTM A351-CF3M/CF8M stainless steel. Welded construction; 100% penetration welding by welders certified to ASME Boiler and Pressure Vessel Code, Section IX. Precision-ground stainless steel ball bearings, Buna-N O-ring main seal, Buna-N O-ring dust seal. Standard flanges are ASME 150 lb. raised face type.
|
