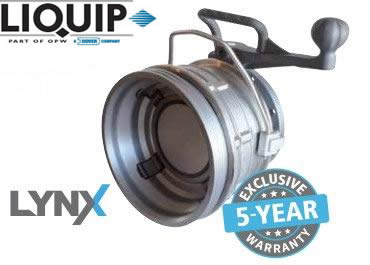

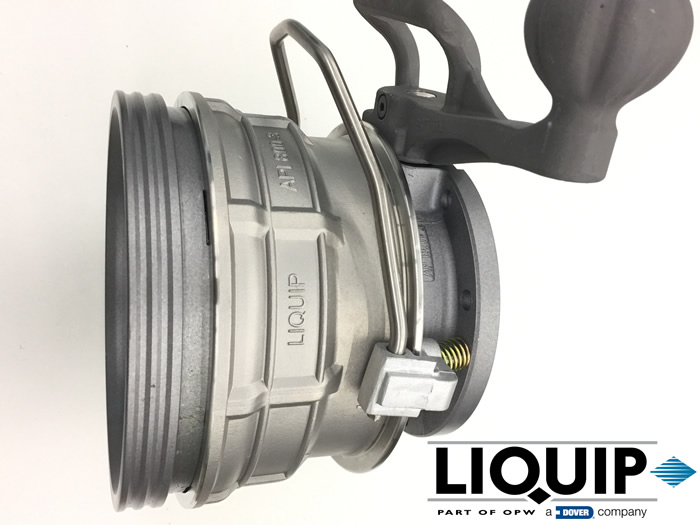

OPW LIQUIP API半自動干式接頭LYNX850VG
Not Just Better In Every Way. The Best In Every Way.
LYNX – Bottom-Loading Coupler for Liquid Terminals, Tank Truck
LIQUIP API半自動干式接頭LYNX850VG
LYNX Series Bottom Loading Coupler

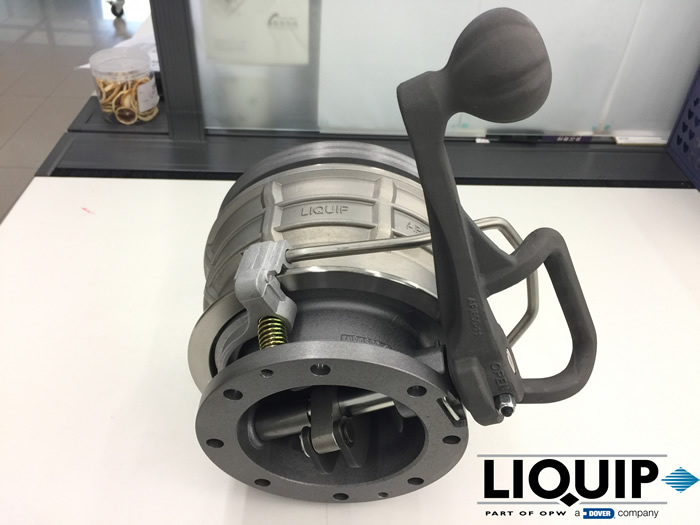

LYNX Series Bottom-Loading Coupler

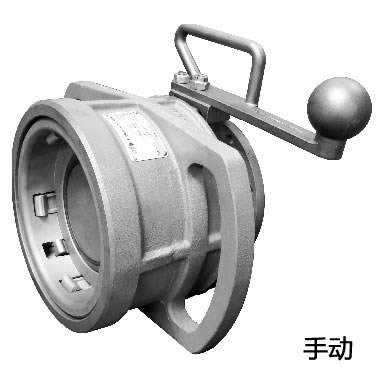

Lynx系列底部加載耦合器代表了OPW工程系統的新時代。我們已經完全重新想象了API干裂連接器可以是什么。輕松操控。先進的安全功能。-小的泄漏。也許-令人印象深刻的是：由于采用了革命性的U型銷設計，整個車鉤的拆卸非常迅速和容易。 不是所有方面都好。各方面都是-好的。Lynx–液體終端、油罐車的底部裝載連接器。Lynx經過優化，使您的液體終端和油罐車在干裂原料藥技術方面表現-佳。從其超耐用的不銹鋼軸環到其保護裝卸臂連接的能力，即使面對高達500 psi的沖擊壓力，您也可以依靠Lynx多年的服務，并幫助-大限度地減少液體損失。API干式接頭(又稱干式閥、干式分離閥、下裝接頭)，主要應用于石油庫區底部密閉裝卸系統中鶴管與油罐車之間。接合快速，由于具有自封機構，基本可以做到接合與分離時無泄漏。是油氣回收的重要環節設備。手動開啟機構。
規格參數Specifications
| Handle Length |
Short 5.9" (150mm) or Long 7.8" (200mm) |
| Seals |
Viton B, Viton GFLT, Nitrile/Buna, Fluorosilicone, FFKM, Ultra Low-Temp (FKM)
|
| Max Working Pressure |
80 psi (5.5 bar) (550 kPa) |
| Product Test Pressure |
119 psi (8.2 bar) (820 kPa)
|
| Design Pressure |
363 psi (25 bar) (2500 kPa)
|
| Max Surge Pressure |
493 psi (34 bar) (3400 kPa)
|
| Operating Temperature |
Viton B70: 0°F to 200°F (-15°C to +90°C); Viton GFLT: -20°F to +200°F (-28°C to +90°C); Nitrile/Buna: -40°F to 212°F (-40°C to 100°C); Fluorosilicone: -49°F to 350°F (-45°C to 177°C); FFKM: 23°F to 140°F (-5°C to 60°C); FKM (Ultra Low-Temp): -40°F to 200°F (-40°C to 90°C)
|
| Design Standard |
API RP 1004 8th EDITION 2003 - Bottom Loading and Vapour Recovery; AS5602-2009 |
| Dismantling |
Removal of one U-pin enables the shaft assembly and main poppet to be withdrawn
|
| Mounting |
By industry standard 4" (100 mm) TTMA Flange
8 holes 7/16" on 5.8" PCD, 6.6" outside diameter (11 mm on 149 mm PCD, 168 mm OD)
Use spring washers when mounting coupler as per common industry practice |
| Adjustment or Service |
Refer to Maintenance Instructions document
|
| Weight |
19 lbs. (8.6 kg.) |
Vitonis a registered trademark of DuPont
進口LYNX Series系列API接頭LYNX852
LYNX Series Bottom-Loading Coupler
Not Just Better In Every Way. The Best In Every Way.
LYNX – Bottom-Loading Coupler for Liquid Terminals, Tank Trucks
不是所有方面都好。各方面都是-好的。
Lynx–液體終端、油罐車的底部裝載連接器
Lynx系列底部加載耦合器代表了OPW工程系統的新時代。我們已經完全重新想象了API干裂連接器可以是什么。輕松操控。先進的安全功能。-小的泄漏。也許-令人印象深刻的是：由于采用了革命性的U型銷設計，整個車鉤的拆卸非常迅速和容易。
The LYNX Series bottom-loading couplers represent a new era from OPW Engineered Systems. We’ve completely reimagined what an API dry-break coupler can be. Effortless handling. Advanced safety features.Minimal leakage. And perhaps most impressive: incredibly quick and easy disassembly of the entire coupler thanks to a revolutionary U-pin design.
Lynx系列車鉤-底部裝載-佳
LYNX Series Coupler – The Best in Bottom Loading
Lynx經過優化，使您的液體終端和油罐車在干裂原料藥技術方面表現-佳。從其超耐用的不銹鋼軸環到其保護裝卸臂連接的能力，即使面對高達500 psi的沖擊壓力，您也可以依靠Lynx多年的服務，并幫助-大限度地減少液體損失。LYNX is optimized to bring your liquid terminals and tank trucks the very best in dry-break API technology. From its ultra-durable stainless-steel collar to its ability to protect your loading-arm connection even when facing surge pressures up to 500 psi, you can count on LYNX for years of service and to help minimize fluid loss.
Fast Disassembly, Less Downtime
快速拆卸，減少停機時間
如果你有30秒的時間和螺絲刀，你可以拆卸Lynx。由于采用了U形銷設計，裝卸臂操作人員無需專用工具即可進行車鉤維護，并能快速完成。If you have 30 seconds and a screwdriver, you can disassemble LYNX. Thanks to a U-pin design, loading-arm operators can perform coupler maintenance without special tools and do it quickly.
5-Year Warranty
Fast in-field replacement of the main seals, on or off the arm
Quick and easy disassembly of entire coupler through U-pin design
Automatic latching
U-pin is secured when the TTMA flange is fastened to prevent the pin from coming out during service
A variety of seals available to suit a range of applications
Two operating handle sizes to suit customer preference
Four “true-interlocking” stainless-steel latches ensure secure coupling and maximum safety
High-quality components including a stainless-steel collar and hard anodized aluminum body for increased service durability and life
Nominal product leakage during disconnect increases site safety
Low risk of leakage because of a proven seal design
Ergonomic operating handle and carry loop results in less physical strain on users

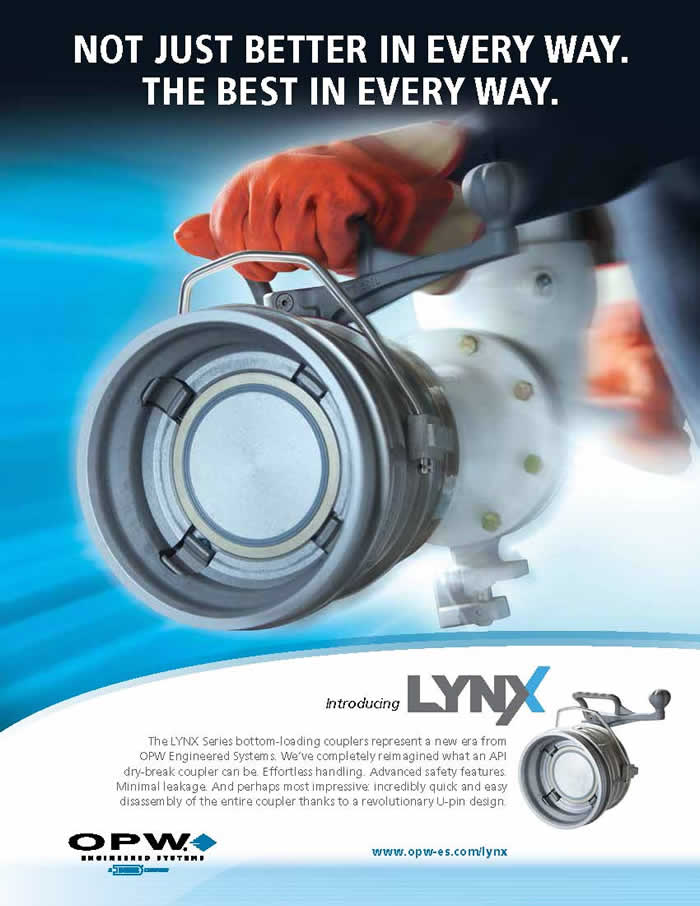

NOT JUST BETTER IN EVERY WAY.
THE BEST IN EVERY WAY.
NOTE: All information subject to engineering and/or other changes. All trade names are copyrighted. Patents Pending. 2016 OPW Engineered Systems.2016 Delaware Capital Formation, Inc. All Rights Reserved. DOVER and the DOVER logo are registered trademarks of Delaware Capital Formation, Inc.,a wholly-owned subsidiary of Dover Corporation.

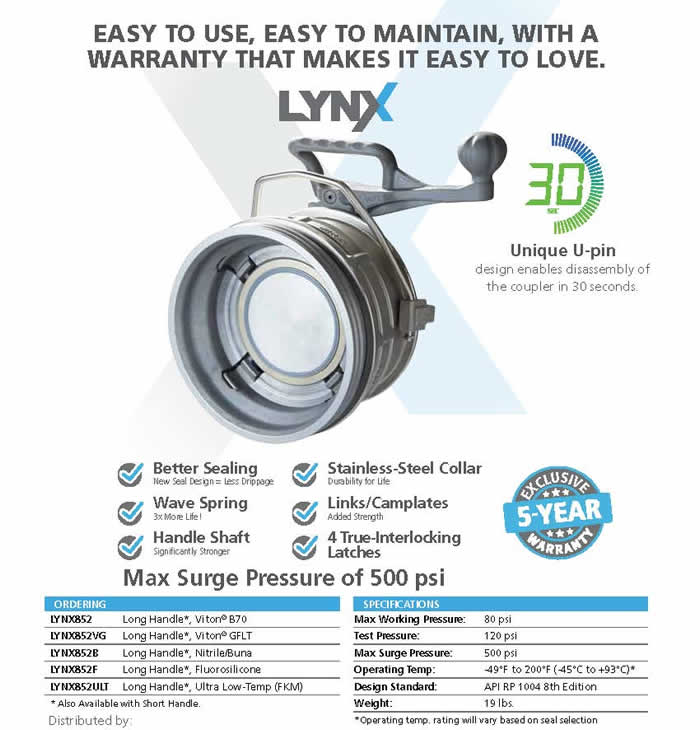

EASY TO USE, EASY TO MAINTAIN, WITH A
WARRANTY THAT MAKES IT EASY TO LOVE.
ORDERING
LYNX852 Long Handle*, Viton B70
LYNX852VG Long Handle*, Viton GFLT
LYNX852B Long Handle*, Nitrile/Buna
LYNX852F Long Handle*, Fluorosilicone
LYNX852ULT Long Handle*, Ultra Low-Temp (FKM)
* Also Available with Short Handle.
Better Sealing
New Seal Design = Less Drippage
Wave Spring
3x More Life!
Handle Shaft
Significantly Stronger

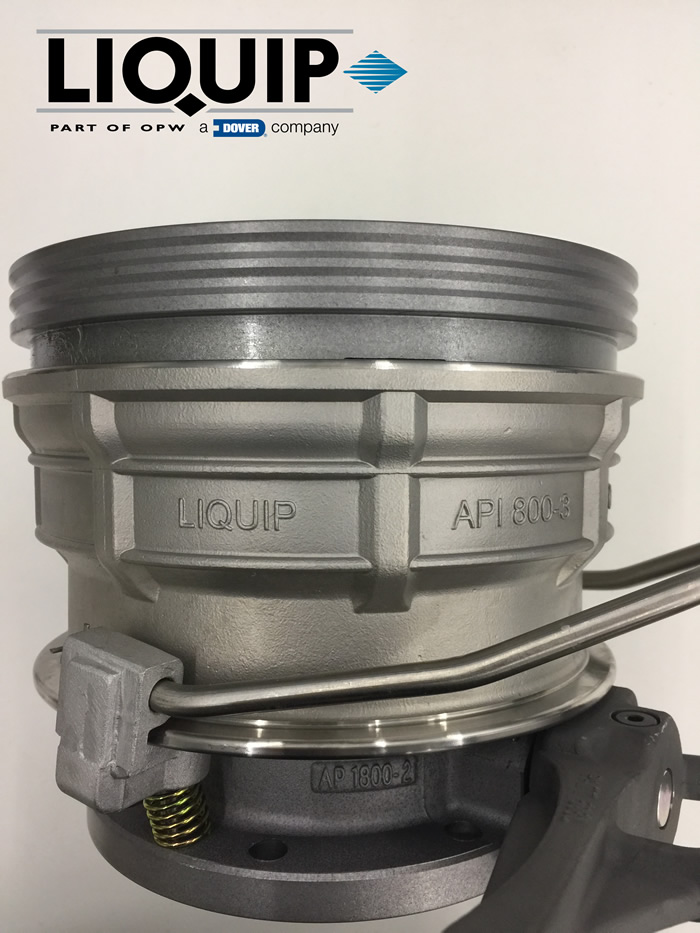

Stainless-Steel Collar
Durability for Life
Links/Camplates
Added Strength
4 True-Interlocking
Latches
Max Surge Pressure of 500 psi
Unique U-pin
design enables disassembly of
the coupler in 30 seconds.
EXCLUSIVE
LYNX850 SS
12/2016
SPECIFICATIONS
Max Working Pressure: 80 psi
Test Pressure: 120 psi
Max Surge Pressure: 500 psi
Operating Temp: -49°F to 200°F (-45°C to +93°C)*
Design Standard: API RP 1004 8th Edition
Weight: 19 lbs.
Distributed by: *Operating temp. rating will vary based on seal selection
Downloads
LYNX Series Bottom-Loading Coupler Sell Sheet
LYNX Series Bottom-Loading Coupler Data Sheet
LYNX Series Bottom-Loading Coupler Installation Operations Manual
Folleto Soluciones Totales Para Terminales (En Espaol)
Especificaciones y Partes Acople LYNX (En Espaol)
Folleto Acople LYNX (En Espaol)
Terminal Solutions Brochure
Safety and Reliability
Minimal product leakage during disconnect increases site safety.
Low risk of leakage because of a proven seal design.
Four, "true interlocking" stainless steel latches ensure superior latch alignment and maximum safety.
Lightweight without reducing safety and reliability.
High-quality components including a stainless-steel collar and hard anodized aluminum body for increased service durability and life.
Performance and Convenience
Fast and easy disassembly of entire coupler through U-pin design.
U-pin is secured when the TTMA flange is fastened to prevent the pin from falling out in service.
Fast in-field replacement of main seals, on or off the arm.
Two operating handle sizes to suit customer preference.
Less drippage at disconnect compared to previous models.
Collar designed to ensure minimal distortion of critical latching face.
Easy to operate handle with a noticeable positive lock.
Comfort and Style
Ergonomic operating handle and carry loop results in less physical strain on users.
Handle Length
Short (150mm) or Long (200mm).
Seals
-Viton B.
-Viton GFLT (recommended for ethanol blends).
-FFKM.
-Fluorosilicone.
-NBR (Nitrile/Buna).
Pressures
Max Working Pressure: 80 psi (5.5 bar) (550 kPa).
Product Test Pressure: 119 psi (8.2 bar) (820 kPa).
Design Pressure: 363 psi (25 bar) (2,500 kPa).
Max Surge Pressure: 493 psi (34 bar) (3,400 kPa).
Operating Temperature
Viton B70: -15°C to 90°C (0°F to 200°F).
Viton GFLT: -28°C to 90°C (-20°F to 200°F).
Nitrile/Buna: -40°C to 100°C (-40°F to 212°F).
Fluorosilicone: -45°C to 177°C (-49°F to 350°F).
FFKM: -5°C to 80°C (-23°F to 176°F).
Tecnoflon: -40°C to 90°C (-40°F to 200°F)
Design Standard
API RP 1004 8th EDITION 2003 - Bottom Loading and Vapour Recovery.
Dismantling
Removal of one U-pin enables the shaft assembly and main poppet to be withdrawn.
Mounting
By industry standard 100mm (4”) TTMA Flange.
Weight
8.6kg (LYNX85x Couplers).
10.81kg (LYNX86x Couplers).
LYNX850: Short Handle, Viton B.
LYNX850VG: Short Handle, Viton GFLT.
LYNX850C: Short Handle, FFKM.
LYNX852: Long Handle, Viton B.
LYNX852VG: Long Handle, Viton GFLT.
LYNX852C: Long Handle, FFKM.
LYNX852G: Long Handle, Viton B - AVGAS Selective.
LYNX852J: Long Handle, Viton B - Jet Selective.
LYNX862: Long Handle Drip Catcher, Viton B70.
LYNX862VG: Long Handle Drip Catcher, Viton GFLT.
LBM800: Liquip Loading Arm Balance Assembly.
LBV450VG: 4" Butterfly Valve, Viton GFLT seals.
BF4-SG-25: 4" TTMA sightglass flange, 25mm thick.
BF4-SG-40: 4" TTMA sightglass flange, 40mm thick.
0657V: 4" TTMA Viton Gasket.
4248: 4" TTMA Klinger Gasket
4" API 下裝干式接頭 | API 干式接頭(又稱干式閥、干式分離閥、下裝接頭) | OPW鶴管、輸油臂、API接頭 干式閥,OPW鶴管、輸油臂、API接頭 干式閥 | API鶴管 底部裝車鶴管 干式分離閥鶴管、干式分離閥、進口干式分離閥、下裝鶴管干式閥、美國干式分離閥、干式閥泄漏量、美國OPW干式分離閥、API干式閥型號、Api干式閥接口、OPW鶴管、輸油臂、API接頭 干式閥_OPW | API干式接頭(底裝鶴管用干式分離閥、下裝接頭) | 干式接頭,下裝接頭,API干式分離閥,API卸油閥,卸油閥,進口干式接頭 、 底裝鶴管 API干式分離閥鶴管| API干式接頭(底裝鶴管用干式分離閥、下裝接頭) | OPW API干式接頭(底裝鶴管用干式分離閥、下裝接頭) OPW API 干式分離閥

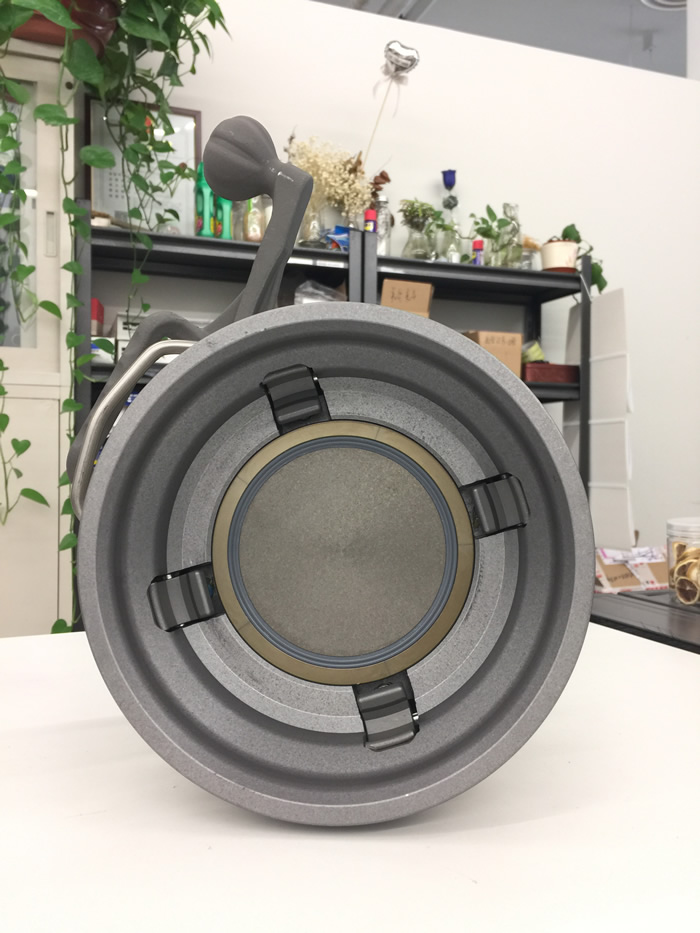

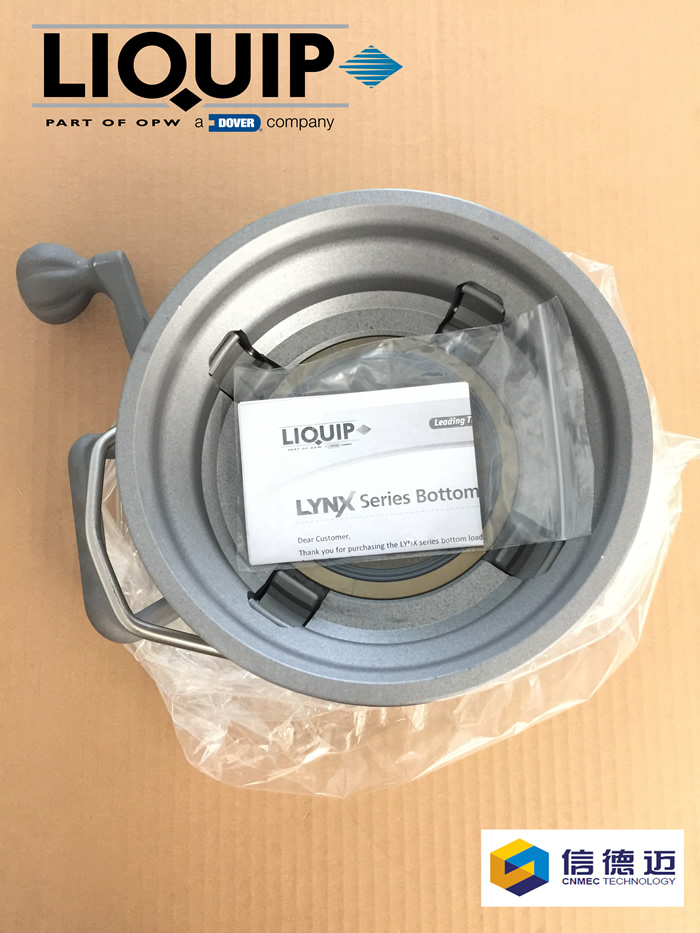

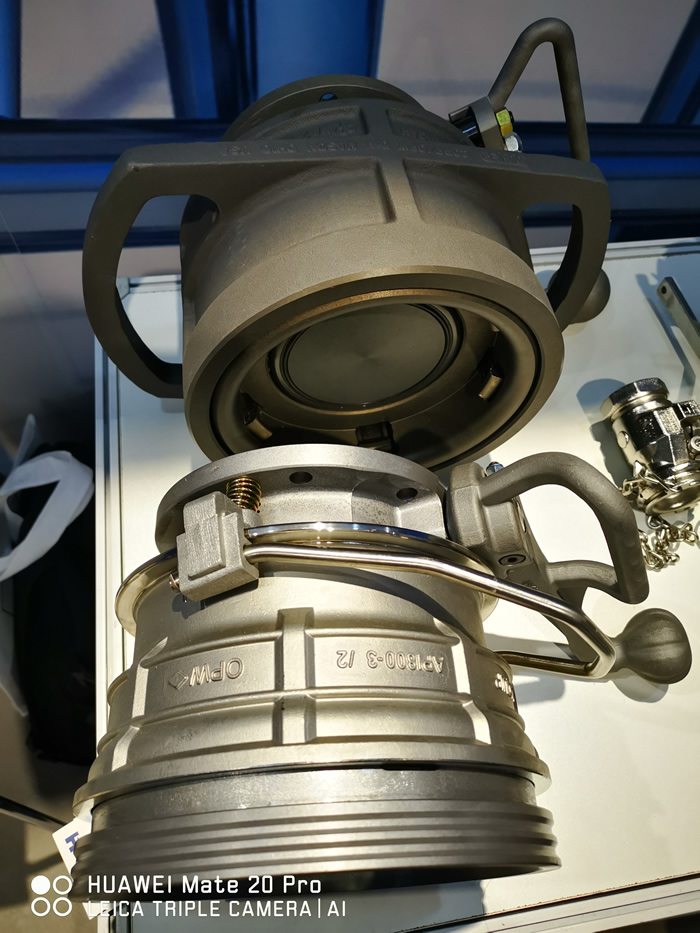

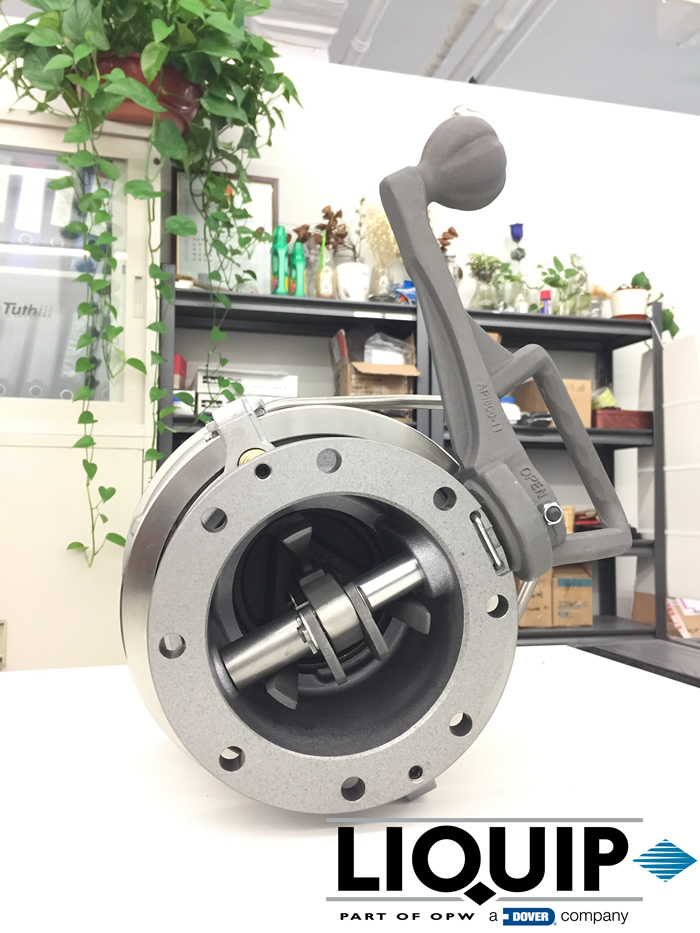

- LIQUIP API半自動干式接頭LYNX850VG LYNX Series Coupler | LYNX Series Bottom-Loading Coupler | LYNX Series Bottom Loading Coupler LYNX86x Couplers LYNX85x Couplers LYNX850: Short Handle, Viton B. | LYNX850VG: Short Handle, Viton GFLT | LYNX850C: Short Handle, FFKM | LYNX852: Long Handle, Viton B | LYNX852VG: Long Handle, Viton GFLT | LYNX852C: Long Handle, FFKM | LYNX852G: Long Handle, Viton B - AVGAS Selective | LYNX852J: Long Handle, Viton B - Jet Selective | LYNX862: Long Handle Drip Catcher, Viton B70 | LYNX862VG 半自動干式接頭實物照片
