新型Lynx接頭正在徹底改變終端負載
New LYNX Coupler is Revolutionizing Terminal Loading
我們對OPW工程系統不斷創新和推動行業發展深感自豪。隨著OPW慶祝125年的業務，我們將用我們的Lynx接頭等新產品來迎接新一代的創新。We take great pride at OPW Engineered Systems in continually innovating and advancing the industry. And as OPW celebrates 125 year of business, we’re embracing this new generation of innovation with new products like our LYNX coupler.

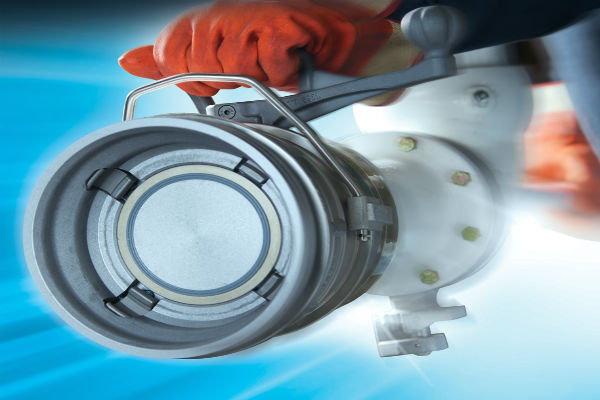

Lynx系列底部裝載車鉤代表了OPW工程系統的一個新時代。通過與Liquip的合作，OPW工程系統已經完全重新設想了API干斷接頭與新Lynx接頭的區別，使液體終端和油罐車成為干斷API技術中-好的。The LYNX Series Bottom-Loading Coupler represents a new era from OPW Engineered Systems. Through a collaborative effort with Liquip, OPW Engineered Systems has completely reimagined what an API dry-break coupler can be with its new LYNX coupler, bringing liquid terminals and tank trucks the very best in dry-break API technology.
從其超耐用的不銹鋼軸環到其保護裝卸臂連接的能力，即使面對高達500 psi的沖擊壓力，您也可以依靠Lynx多年的服務，并幫助-大限度地減少液體損失。From its ultra-durable stainless-steel collar to its ability to protect your loading-arm connection even when facing surge pressures up to 500 psi, you can count on LYNX for years of service and to help minimize fluid loss.
專為性能而設計，Lynx具有輕松操作、先進安全功能和-小泄漏。但也許-令人印象深刻的是，由于革命性的U形銷設計，它的30秒拆卸速度異常之快。Engineered for performance, LYNX features effortless handling, advanced safety features and minimal leakage. But perhaps most impressive is its ridiculously quick, 30-second disassembly thanks to a revolutionary U-pin design.
一個接頭可能負責傳輸數百萬加侖的液體，因此您希望盡可能縮短服務周期。林克斯就是這么做的。通過簡單的拉動，U形銷設計使操作員能夠接觸到內部部件，進行維護，并快速將連接器重新投入使用。
A single coupler might be responsible for the transfer of millions of gallons of fluid, so you want to shorten the service cycle as much as possible. LYNX accomplishes just that. With a simple pull, the U-pin design enables the operator to gain access to the internal components, perform maintenance and quickly put the coupler back in service.
Lynx具有四個“真正聯鎖”的不銹鋼閂鎖，確保了安全的耦合和-大的安全性。由于經過驗證的密封設計，泄漏風險非常低。為了減少用戶的身體壓力，Lynx配備了符合人體工程學的操作手柄和攜帶環。LYNX features four “true-interlocking” stainless-steel latches, which ensure secure coupling and maximum safety. Due to the proven seal design, there is a very low risk of leakage. And to reduce physical strain on users, LYNX is equipped with an ergonomic operating handle and carry loop.
每一款Lynx都是為在裝貨碼頭提供長期解決方案而設計的，并有五年的保修期作為后盾。從延長波形彈簧的使用壽命到能夠處理高達500磅/平方英寸的沖擊壓力，OPW設計的Lynx使用時間非常長。Each LYNX is designed to be a long-term solution at the loading terminal and is backed by a five-year warranty. From extending the life of the wave spring to being able to handle surge pressures up to 500 psi, OPW engineered LYNX to last a very long time.
在范圍內，OPW工程系統公司一直是開發裝載和耦合系統的領導者，用于安全、高效地裝載和卸載危險流體。Lynx確實是我們創新技術的下一個發展。Throughout the world, OPW Engineered Systems has been a global leader in developing loading and coupling systems for the safe and efficient loading and unloading of critical hazardous fluids. LYNX is truly the next evolution of our innovative technologies.
Click here to learn more about the LYNX coupler and OPW Engineered System’s Total Terminal Solutions.
單擊此處了解有關Lynx接頭和OPW工程系統的總體終端解決方案的更多信息。
