OPW 1600ANF 系列 陰端接_1600ANF系列Kamvalok鐵路槽車用陽端接頭
OPW 1600ANF Series Dry Disconnect Adaptors干式接頭
OPW 1600ANF系列陽端接頭是專為采用ASME法蘭的用途而設計的。 OPW 1673ANF、1674 ANF、和1676 ANF干式快速陽接頭能將有害化學品及其蒸汽封閉在管線中，防止其泄漏到環境中。 結構堅固而又便于快速安裝的1600ANF系列干式快速陽接頭是用于閉路裝卸操作的理想設備。The OPW 1600ANF Series Adaptors are designed specifically for applications using an ASME flange.The OPW 1673ANF, 1674ANF and 1676ANF Dry Disconnect Adaptors keep hazardous chemicals and vapors in-line and out of the environment.
OPW 1600ANF Series Dry Disconnect Adaptors_PDF下載
優點
- 防止漏液—采用提升閥操縱結構，只能在Kamvalok系列干式快換接頭聯接使用
- 便于聯接—提供各種方便的聯接頭子，適用于鐵路和公路槽車、多式聯運儲罐和工藝過程儲罐中的操作使用
- 可與D2000干式快換接頭或Kamvalok系列干式快換接頭聯接使用
- 便于清洗—可以快速拆卸開來
- 專為采用ASME法蘭的用途設計
特性
- 高強度結構—不銹鋼材質的耐腐蝕強度可與304不銹鋼相當
- 可提供凸面法蘭或榫槽型的設計結構
- 彈簧加載的提升閥結構—能保證快速關閉和可靠密封
- 多種密封材質可供選用—Teflon、EPT、Chemraz、Buna N和Viton等。
- 可提供1-1/2”、2”和3”(DN40,50,80)口徑規格
OPW 1600ANF and 1600ANFT Series Railcar Adaptors
OPW 1600ANF and 1600ANFT Series Railcar Adaptors
OPW 1600ANF Series Kamvalok Railcar Adaptor

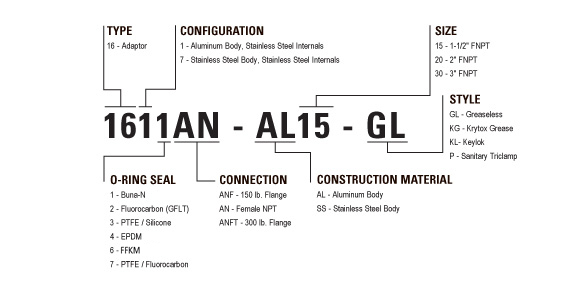

OPW 1600ANF Stainless Steel Adaptors - 150 Lb. ASME RF Flange
1672ANF-SS15 1-1/2" Viton Seal, SST Adaptor* w/2" Flange
1672ANF-SS20 2" Viton Seal, SST Adaptor* w/2" Flange
1672ANF-SS30 3" Viton Seal, SST Adaptor* w/3" Flange
1673ANF-SS1515 1-1/2" Teflon Silicone Seal, SST Adaptor* w/1-1/2" Flange
1673ANF-SS15 1-1/2" Teflon Silicone Seal, SST Adaptor* w/2" Flange
1673ANF-SS20 2" Teflon Silicone Seal, SST Adaptor* w/2" Flange
1673ANF-SS30 3" Teflon Silicone Seal, SST Adaptor* w/3" Flange
1674ANF-SS15 1-1/2" EPT Seal, SST Adaptor* w/2" Flange
1674ANF-SS20 2" EPT Seal, SST Adaptor* w/2" Flange
1674ANF-SS30 3" EPT Seal, SST Adaptor* w/3" Flange
1676ANF-SS15 1-1/2" Chemraz Seal, SST Adaptor* w/2" Flange
1676ANF-SS20 2" Chemraz Seal, SST Adaptor* w/2" Flange
1676ANF-SS30 3" Chemraz Seal, SST Adaptor* w/3" Flange
1677ANF-SS15 1-1/2" Teflon Viton Seal, SST Adaptor* w/2 " Flange
1677ANF-SS20 2" Teflon Viton Seal, SST Adaptor* w/2" Flange
1677ANF-SS30 3" Teflon Viton Seal, SST Adaptor* w/3" Flange
1679ANF-SS15 1-1/2" Viton-B Seal, SST Adaptor* w/2" Flange
1679ANF-SS20 2" Viton-B Seal, SST Adaptor* w/2" Flange
1679ANF-SS30 3" Viton-B Seal, SST Adaptor* w/3" Flange
Stainless Steel Adaptors - 300 Lb. ASME Tongue & Groove Flange
1674ANFT-SS20 2" EPT Seal, SST Adaptor* w/2" Flange
1674ANFT-SS30 3" EPT Seal, SST Adaptor* w/3" Flange
1676ANFT-SS20 2" Chemraz Seal, SST Adaptor* w/2" Flange
1676ANFT-SS30 3" Chemraz Seal, SST Adaptor* w/3" Flange
1600ANF Series Kamvalok Railcar Adaptor
The OPW 1600ANF and 1600ANFT Series Railcar Adaptors are designed specifically for applications using an ANSI flange. The OPW 1600ANF Dry Disconnect Adaptors keep hazardous chemicals and vapors in-line and out of the environment. Rugged, yet quick and easy to install, the 1600ANF Series is ideal for closed-loop loading conversions.
性能參數：
Available in 1 ?”, 2” & 3” Sizes
Heavy-Duty Construction – Available in aluminum, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel).
Wide Range of Seals Available – Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz?
Female Threads – Can be fitted to either a male pipe end or to a hose fitting
Spring-Loaded Poppet Design – Assures fast closing and a tight seal
Eliminates Threads – One less leak point
Spill Prevention – The poppet-actuated design can only be opened with a Kamvalok? coupling; designed to provide a tight seal when closed.
Easy Access Connection – Provides easy connection access for tank cars, tank trucks, intermodal tanks, and in-process operations.
Connects with Kamvalok? 1700 Series Dry Disconnect Couplings
Easy Cleaning – Can be quickly disassembled
Specifically designed for applications using ANSI flanges
Approvals
| AAR Number |
Description |
| E129504 |
1600AN Series Kamvalok Adpater – Threaded |
| E129505 |
1600ANF Series Kamvalok Adapter – Flanged |
| E129507 |
634B/733DCL Series Kamlok/Autolok Dust Caps |
| CRN Number |
Region |
Description |
| OA4911.52 |
Alberta |
1.5”, 2”, 3” Aluminum and SST Kamvalok |
| OA4911.5R1 |
Ontario |
1.5”, 2”, 3” Aluminum and SST Kamvalok |
Kamvalok Dry Disconnect Couplings by OPW Engineered Systems

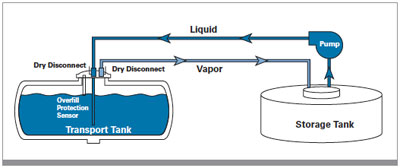

Because of its unique poppet action the OPW Kamvalok Dry Disconnect virtually eliminates spillage of any residual liquid contained within the line after disconnection. Kamvaloks are used at transfer points where product loss is unacceptable.
Learn more about our Kamvalok brand of products
