OPW 8460系列光學-熱感應控制系統
OPW 8460 Opti-Therm Monitor
OPW 8460光-熱過量灌裝檢測系統能識別信號技術、傳輸采用的是光學還是熱感應技術、確認接地狀況，并同終端自動化（TAS）進行通信交流。該系統能使灌裝終端實現-大限度的靈活性，同時保證其安全性。Civacon Opti-Therm rack monitors are used to automatically recognize the type of overfill system (optic or thermistor signal technology) that is being used on a transport. When connected to the transport, the monitor checks the status of sensors within tanks or compartments. Overfill detection systems, such as the 8460 and 8580, provide automatic warning of product overfill detection at predetermined levels and warn of a pending overfill condition.
OPW 8460系列光學-熱感應控制系統 OPW 8460 Opti-Therm Monitor
OPW 8460光—熱控制器—規格
操作溫度:-40oF~158oF(-40oC~70oC)
輸入要求：120 VAC 60 Hz
15VA（標準），可供120 VAC
輸出繼電器觸點：240 VAC–5A DPDT
響應時間：不超過0.5秒（干-濕轉換過程）
電氣連接：內置接線端子板
外殼：NEMA 7防爆型
殼體材質：鋁
重量：8 4 6 0型— 3 2lbs.
認證：FM、CSA

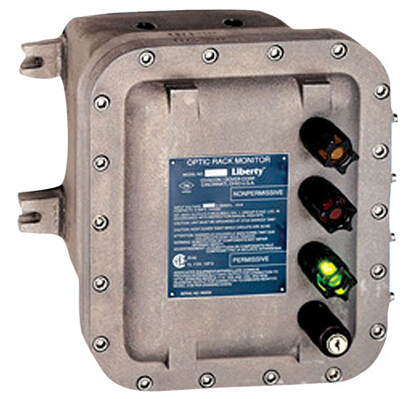

Model 8460 Automatic Switching Opti-Therm Rack Monitor
Opti-Therm Rack Monitor (Models 8460/8580) for Bottom Loading
Optic and Thermistor Automatic Switching, Status Lights, Keyed-Bypass Switch and Ground Verifiction
The Civacon Opti-Therm rack monitors are used to automatically recognize the type of overfill system (optic or thermistor signal technology) that is being used on a transport. When connected to the transport, the monitor checks the status of sensors within tanks or compartments. Overfill detection systems such as the 8460 provide automatic warning of product overfill detection at predetermined levels and warn of a pending overfill condition.
Order Guide
- Monitors
- 8460-8460- Opti-Therm Rack Monitor with ground verification, 6 Channel and Key Bypass (US Only)
- 8580- Opti-Therm Rack Monitor with ground verification, 6 Channel, LED Display and Bypass (US Only)
- 8580C (Canada)- Rack Monitor with ground verification, 8 Channel, LED Display and Bypass (Canada Only)
- Plug & Cord Sets
- Optic Plug & Cords
- 7100-7100, Optic plug with 30’ 10-conductor coiled cord
- 7120-7120, Optic plug with 30’ 10-conductor coiled cord and 7-pin breakaway plug
- 7100SR-7100, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement
- 7120SR-7120, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement and 7-pin breakaway plug
- 7190S-0020, 7100-7100 Optic plug with 30’ coiled cord and 7500-7500 junction box
- Thermistor Plug & Cords
- 7300-7300, Thermistor plug with 30’ 10-conductor coiled cord
- 7300C-7300, Thermistor plug with 30’ 10-conductor coiled cord, CANADA ONLY
- 7300SR-7300, Thermistor plug with 30’ 10-conductor coiled cord for Scully replacement
- 7320-7320, Thermistor plug with 30’ 10-conductor coiled cord and 13-pin breakaway plug
- 7320SR-7320, Thermistor plug with 30’ 10-conductor coiled cord for Scully replacement and 13-pin breakaway plug
- 7390S-0020, 7300-7300 Thermistor Plug with 30’ 10-conductor coiled cord and 7500-7500 Junction box
- 7320-7320 Thermistor Breakaway Plug with 30’ 10-conductor coiled cord, 13-pin breakaway plug and 7510T-7510 Junction box
- 7320SR-7320 Thermistor Breakaway Plug with 30’ 10-conductor coiled cord for Scully replacement, 13-pin breakaway plug and 7510T-7510 Junction box
- Grounding Cable & Clamps
- 7720-7720, Ground Verification Clamp with 40’ straight cord
- 7720-COIL, Ground Verification Clamp with 30’ coiled cord
- 7620-7620, Ground Verification Plug & Cord Set for dual ball application with 30’ straight cord
- 7620-COIL, Ground Verification Plug & Cord Set for dual ball application with 30’ coiled cord
- Junction Boxes
- 7500-7500, Junction Box for Optic, Thermistor and Ground verification Plug & Cord Sets (Non-Breakaway)
- 7540-7540, Junction Box with 7-pin socket for Cane Probes or Breakaway Optic Plug & Cord Sets
- 7510T-7510, Junction Box with 13-pin socket for Breakaway Thermistor Plug & Cord Sets
- Options
- 8580, Opti/Therm Rack Monitor with Ground verification, 6 Channel, LED Display and Bypass (US Only)
- 7150-7150, Optic Plug Hanger
- 7350-7350, Thermistor Plug Hanger
- 1386-1386, Opti/Therm Rack Monitor Tester
Civacon Plug & Cord Set from OPW-ES
The Civacon Plug & Cord Set has been designed to prevent equipment damage while saving operators the time and money that can be lost as a result of unplugged driveaways. The Breakaway Plug & Cord Set utilizes high-quality, corrosion-resistant
materials for reliable long-life operation.
PRODUCT PRODUCT # DESCRIPTION
Plug & Cord
(select thermistor
or optic)
7100-7100 Optic Plug with 30' 10-conductor coiled cord
7120-7120 Optic Plug with 30' 10-conductor coiled cord and 7-pin breakaway plug
7100SR-7100 Optic Plug with 30' 6-conductor blue coiled cord for Scully replacement
7120SR-7120 Optic Plug with 30' 6-conductor blue coiled cord for Scully replacement and 7-pin breakaway plug
7300-7300 Thermistor Plug with 30' 10-conductor coiled cord
7300C-7300 Thermistor Plug with 30' 10-conductor coiled cord (Canada only)
7320-7320 Thermistor Plug with 30' 10-conductor coiled cord and 13-pin breakaway plug
7300SR-7300 Thermistor Plug with 30' 10-conductor coiled cord for Scully replacement
7320SR-7320 Thermistor Plug with 30' 10-conductor coiled cord for Scully replacement and 13-pin breakaway plug
Junction Box
7500-7500 Junction Box for Optic, Thermistor and Ground Verification Plug and Cord Sets (Non-Breakaway)
7540-7540 Junction Box with 7-pin socket for Cane Probes or Breakaway Optic Plug & Cord Set
7510T-7510 Junction Box with 13-pin socket for breakaway Thermistor Plug & Cord Set
|
