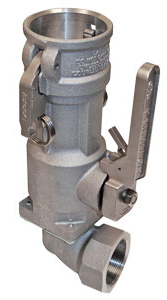

OPW Kamvalok 1711ES和1712ES系列干式快換接頭
Kamvalok 1711ES & 1712ES Series Couplers
OPW Kamvalok 1700ESL系列干式快換接頭
OPW運輸用系列的干式快換接頭被公認為本行業的標準產品，主要用于輸送石油、溶劑和化學制品的采用車載泵送裝置的多隔室運輸槽車。OPW運輸用系列的干式快換接頭主要用戶運輸石油、溶劑和化學產品的采用車載泵送裝置的多隔室運輸槽車。
OPW kamvalok 1711ES和1712ES系列干式快換接頭_PDF 下載
OPW Kamvalok特性和優點
- 防止跑料— 有助于減少連接/脫卸而產生的跑料風險。獨特的自動關閉切斷功能將發生意外斷開時的物料泄漏降低到-低程度。
- 全封閉回路裝卸操作功能—能夠?qū)⒂泻σ后w和氣相物料封閉在管線中，防止其進入環境中。
- 雙重防護—提升閥密封缸的設計提供了從陽端接頭和陰端接頭兩個方向進行自動關閉切斷的功能，用于防止出現意外性泄漏。
- Autolok凸輪自鎖臂—配備的自動鎖定機械裝置可以提供額外的防護功能，連接時當發出清脆的咔噠聲時表明該鎖定裝置已就位。只需要拉動鎖緊環即可打開，解除鎖定。
- 不銹鋼鎖緊桿—鎖定在相應位置，可防止閥門意外打開或關閉。
- 使用方便—簡單的連接/脫卸設計和杠桿操作的內部提升閥結構確保了部件的自由動作和平穩操作。
設計參數
設計標準 ASME B31.3
-大設計溫度 200°F (93°C)
-小設計溫度 -20°F (-29°C)
-大設計壓力 150 PSI (10.5 BAR)
選購指南
90°彎管/旋轉接頭
產品系列號 口徑規格/描述
1711ESL-AL20 2 KVL彎管/旋轉接頭，鎖定臂, Buna-N
1712ESL-AL20 2 KVL彎管/旋轉接頭，鎖定臂，氟橡膠
1714ESL-AL20 2 KVL彎管/旋轉接頭，鎖定臂，三元乙丙橡膠
PRODUCT NO. PRODUCT SIZE CONSTRUCTION SEALS
1711ES-0200 ,90o Elbow/Swivel Coupler 2" Aluminum, Acetal Buna-N
1712ES-0200, 90o Elbow/Swivel Coupler 2" Aluminum, Acetal Viton
OPW Kamvalok 1700ESL & 1700ES Series Transportation Couplers
OPW Transport Series Dry Disconnect Couplings
OPW Transport Series Dry Disconnect Couplings are considered the standard of the industry for use on multi-compartment petroleum, solvent and chemical product delivery trucks with an on-board pumping unit.
性能參數：
Available in 2”
Aluminum material of construction
Offered with or without AutolokTM Locking Arms
Features Poppeted Seal Cylinder with Snap-on Nose Seal
Simple Cam and Groove Design with Lever Actuation
360° Orientation – coupler can be connected in any orientation onto the adaptor.
Manufactured in compliance with the highest quality standards of design, materials and construction.
Spill Protection - Helps to reduce the hazards involved in the connection/disconnection process of transferring hazardous materials.
Autolok Locking Arms - Provide added protection with an automatic locking mechanism signaled by a positive click. Uncoupling requires only an easy tug on the lock release.
Provides For Total Closed-Loop Loading Capabilities - When used with the OPW 2173N Vapor Recovery Dry Disconnect coupling protects people and property from dangerous and potentially costly exposure by keeping hazardous liquids and vapors in-line and out of the environment.
Dual Protection - OPW Kamvaloks provide automatic closure from both directions - the coupler and the adaptor.
Ease of Use - The simple connection and disconnection design and lever actuated internal poppet configuration makes this the first choice for liquid transfer operations.
Kamvalok Dry Disconnect Couplings by OPW Engineered Systems
Because of its unique poppet action the OPW Kamvalok Dry Disconnect virtually eliminates spillage of any residual liquid contained within the line after disconnection. Kamvaloks are used at transfer points where product loss is unacceptable.
